S-BT-ER HC Screw-in stud
New product UltimateItem #r8993826

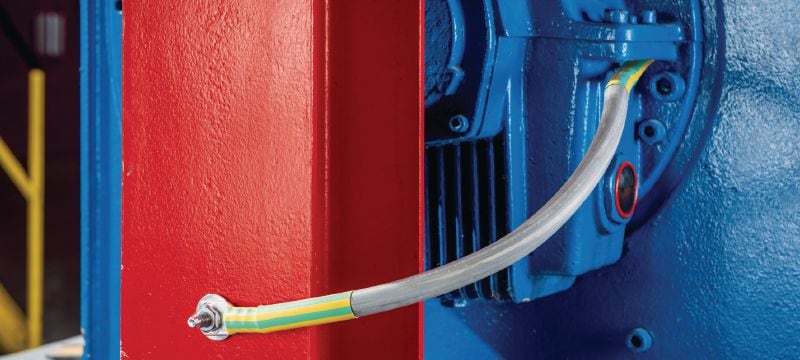

Threaded screw-in stud (stainless steel, whitworth thread) for electrical connections on steel in highly corrosive environments, recommended maximal cross section of connected cable 4/0 AWG
- Product class: Ultimate
Share
Features
- Ideal for equipotential bonding
- Enhanced protection against static electricity
- Enhanced safety – allows electrical current to flow through the conductivity disc and then discharges it properly into the base material
- Suitable for use on most standard steel structures
- Stainless steel material provides high corrosion resistance – suitable for use in most industries: marine, offshore, petrochemical and power plant applications
Applications
- Functional bonding
- Protective bonding
- Terminal connection
- Lightning protection
- Bonding and earthing/grounding
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 108.1 kB ]
- LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English, [ 470.9 kB ]
- ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English, [ 1.7 MB ]
- BV Type Approval 45116/B0_BV for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R_(NG), X-FCM-M-(NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 535 kB ]
Instructions for use videos
-
HOW TO fasten the S-BT HC high current electrical connections fastener on steel (EN)
